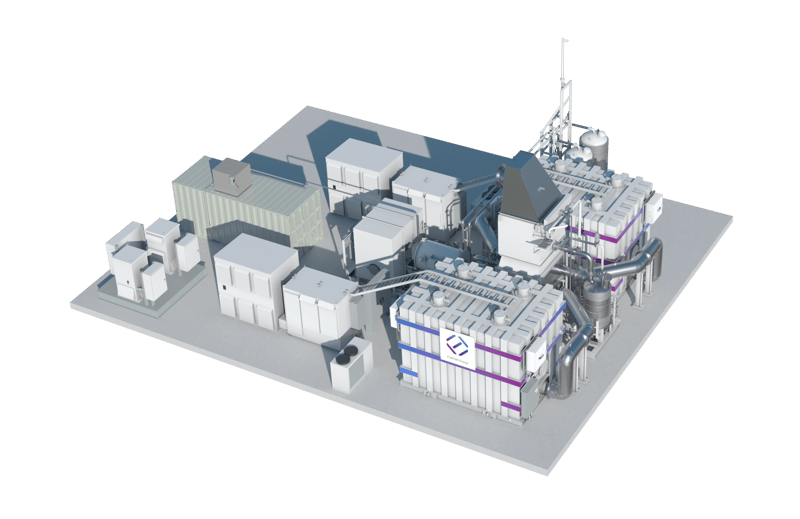

3000 Fuel Cell System Rendering

biogas-icon

Fuel flexible

predictable-cost-icon

Efficient power

reduce-emissions-icon

Low emissions

fuel-cell-scalable

Scalable design

resilience-icon

Microgrid capable

FuelCell Energy’s 3000 fuel cell system generates 2500 kW of reliable and low-carbon power. The fuel flexible system can operate on natural gas, biogas, and natural gas/H2 blends of up to 50% H2 . The system's heat can be used to generate hot water, high-pressure steam, or chilled water to increase overall efficiency. The 3000’s low emissions profile allows for quicker permitting, providing customers with faster time to power.

Specifications

Nameplate Power Output* 2500 kW
Efficiency, Electrical/Overall (LHV)* 50% / 80%
Total Efficiency >80%
NOx Emissions <0.005 kg/MWh
System Dimensions Width: 16.8m Length: 18.3m Height: 7.8m
Noise 62 dBA @ 9.1 m
Power and efficiency using biogas fuel depends upon % of methane in the biogas. Ratings listed are based on 60% methane.
Nameplate Power Output 2500 kW
Efficiency, Electrical/Overall (LHV) 50% / 80%
Total Efficiency >80%
NOx Emissions <0.005 kg/MWh
System Dimensions Width: 16.8m Length: 18.3m Height: 7.8m
Noise 62 dBA @ 9.1 m
Natural Gas
Nameplate Power Output* 2500 kW
Efficiency, Electrical/Overall (LHV)* 50% / 80%
Total Efficiency >80%
NOx Emissions <0.005 kg/MWh
System Dimensions Width: 16.8m Length: 18.3m Height: 7.8m
Noise 62 dBA @ 9.1 m
Power and efficiency using biogas fuel depends upon % of methane in the biogas. Ratings listed are based on 60% methane.
Nameplate Power Output 2500 kW
Efficiency, Electrical/Overall (LHV) 50% / 80%
Total Efficiency >80%
NOx Emissions <0.005 kg/MWh
System Dimensions Width: 16.8m Length: 18.3m Height: 7.8m
Noise 62 dBA @ 9.1 m
Nameplate Power Output 2500 kW
Efficiency, Electrical/Overall (LHV) 50% / 80%
Total Efficiency >80%
NOx Emissions <0.01 lb/MWh
System Dimensions Width: 55' Length: 60' Height: 25.5'
Noise 62 dBA @ 30 ft
Power and efficiency using biogas fuel depends upon % of methane in the biogas. Ratings listed are based on 60% methane.
Nameplate Power Output 2500 kW
Efficiency, Electrical/Overall (LHV) 50% / 80%
Total Efficiency >80%
NOx Emissions <0.01 lb/MWh
System Dimensions Width: 55' Length: 60' Height: 25.5'
Noise 62 dBA @ 30 ft
Natural Gas
Nameplate Power Output 2500 kW
Efficiency, Electrical/Overall (LHV) 50% / 80%
Total Efficiency >80%
NOx Emissions <0.01 lb/MWh
System Dimensions Width: 55' Length: 60' Height: 25.5'
Noise 62 dBA @ 30 ft
Power and efficiency using biogas fuel depends upon % of methane in the biogas. Ratings listed are based on 60% methane.
Nameplate Power Output 2500 kW
Efficiency, Electrical/Overall (LHV) 50% / 80%
Total Efficiency >80%
NOx Emissions <0.01 lb/MWh
System Dimensions Width: 55' Length: 60' Height: 25.5'
Noise 62 dBA @ 30 ft
*Power and efficiency rated at beginning of operation. See spec sheet for further details.
